EQUIPMENT設備
● 蒸汽收縮爐
技術參數
主機尺寸：2000L * 500W * 650H mm
重量：約 150kg
瓶型尺寸：根據客戶提供樣品
速度：最大 15000BPH
電壓：3 相 220V/ 380V，50/60 HZ
電機：0.2KW
蒸汽飽和量：20~50Kg/H
蒸汽壓力：0.5~3Mpa
其他：配備接水盤
全不銹鋼殼體
產品詳情
EQUIPMENT 設備
HEAT SHRINK TUNNEL 熱收縮爐

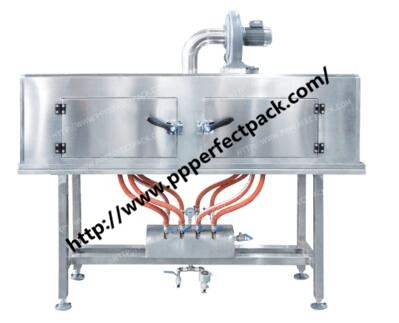

STEAM TUNNEL PF-S2000 蒸汽收縮爐 PF-S2000
TECHNICAL PARAMETER
Main machine size: 2000L * 500W * 650H mm
Weight: Stainless Steel 150 kg
Bottle Scale Range: As per customer’s requirement
Speed: Max.15000BPH
Voltage: 3 PHASE 220V/ 380V, 50/60 HZ
Motor: 0.2KW
Steam Saturation: 20~50kg/H
Steam Pressure: 0.5~3Mpa
Others: Equipped with Water Drain Pan and Support
Whole Stainless Steel boby
