EQUIPMENT設備
● 熱收縮膜套標機
主機尺寸：3000L x 860W x 2000H mm
主機材質：SUS304 納米防指紋不銹鋼板
重量：約 1000kgs
切標可適應直徑范圍 ( 刀盤 )：Φ20~Φ50mm，Φ50~Φ90mm，Φ90~Φ130mm, 可根據客戶特殊要求定制
可適應收縮膜材質 : PVC, PE, OPS, PET, ETC
切標簽高度：20mm ~ 300mm
可適應標簽厚度：0.03mm ~ 0.13mm
收縮膜卷紙管內徑范圍：5〝 ~10〝
速度：250 個每分鐘（商標長度約 100mm，標簽越長速度隨之下降）
電壓：AC 3 phases/ 380V
主機最大功率：約 5
EQUIPMENT 設備

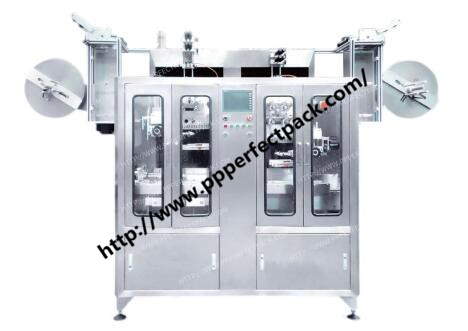

AUTO SLEEVE LABELING MACHINE 熱收縮膜套標機
TWIN HEAD PFL-2250 雙頭套標機 PFL-2250
TECHNICAL PARAMETER
Main machine size: 3000L x 860W x 2000H mm
Weight: about 1000kgs (main machine)
Height: 25mm ~ 300mm
Thickness of label: 0.035mm ~ 0.13mm
Sleeve reel Inner core: 5〝 ~10〝
Voltage: 3 phase / 220V or 380V(can be changed to customer's voltage format)
Consumption power: main machine 5KW
Diameter: Φ25~Φ50mm, Φ50~Φ95mm, Φ95~Φ125mm, one dimension to be choose from three options, special
specification can be made to meet customers’demands.
Speed: Max 36000BPH (Sleeve cut length within 100mm) (The longer the length of the label, the slower the speed,
the accuracy speed should be after testing the client’s bottle sample.)
